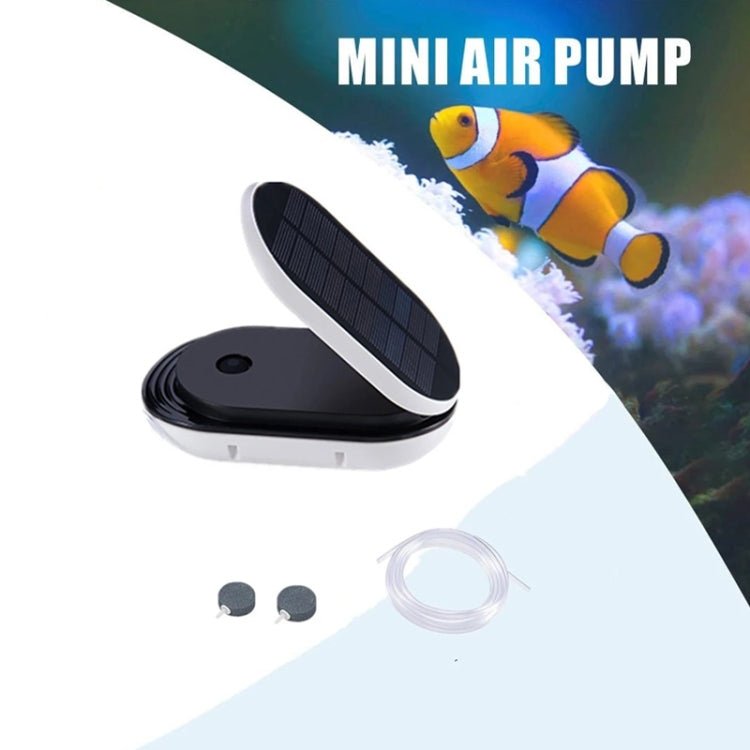

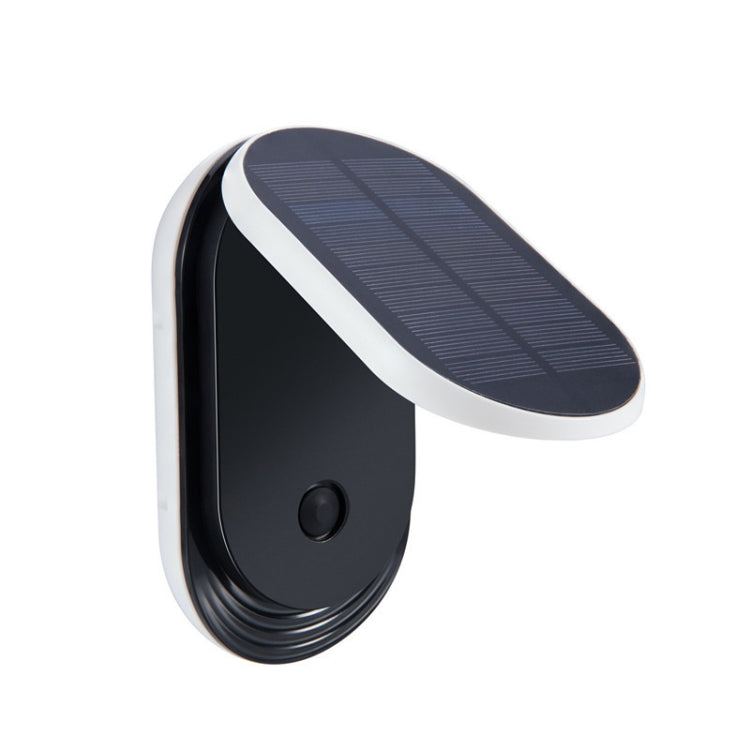

Outdoor Portable Solar Oxygen Pump Aquarium Flip Cover Solar Oxygen Pump, Solar Oxygen Pump

Features:
1. This product adopts solar energy + AC charging, adopts pure copper core, built-in high-quality lithium battery, cycle life up to 500 times, has the characteristics of small size, low noise, large air volume, and long life. It can be used continuously for 15 hours when fully charged about

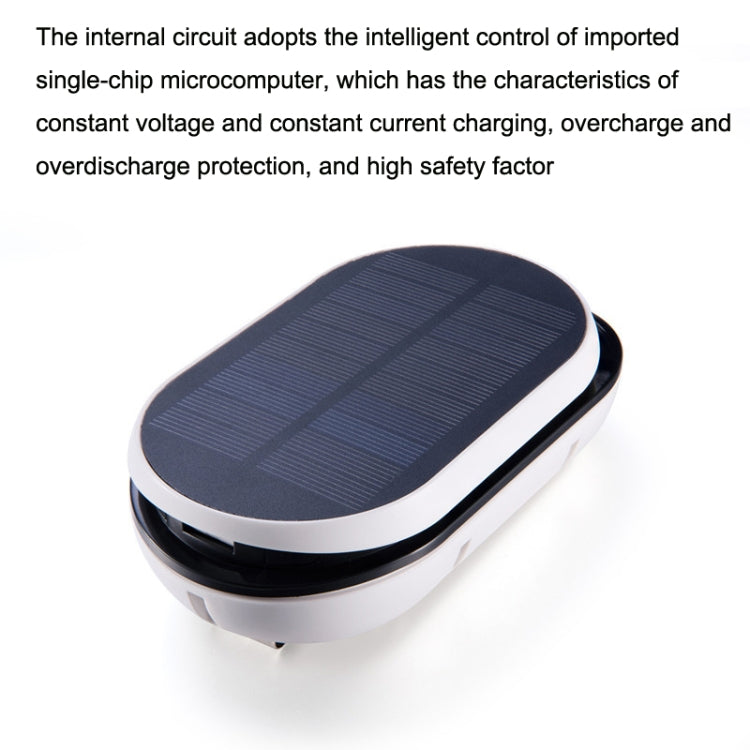

2. The internal circuit adopts the intelligent control of imported single-chip microcomputer, which has the characteristics of constant voltage and constant current charging, overcharge and overdischarge protection, and high safety factor

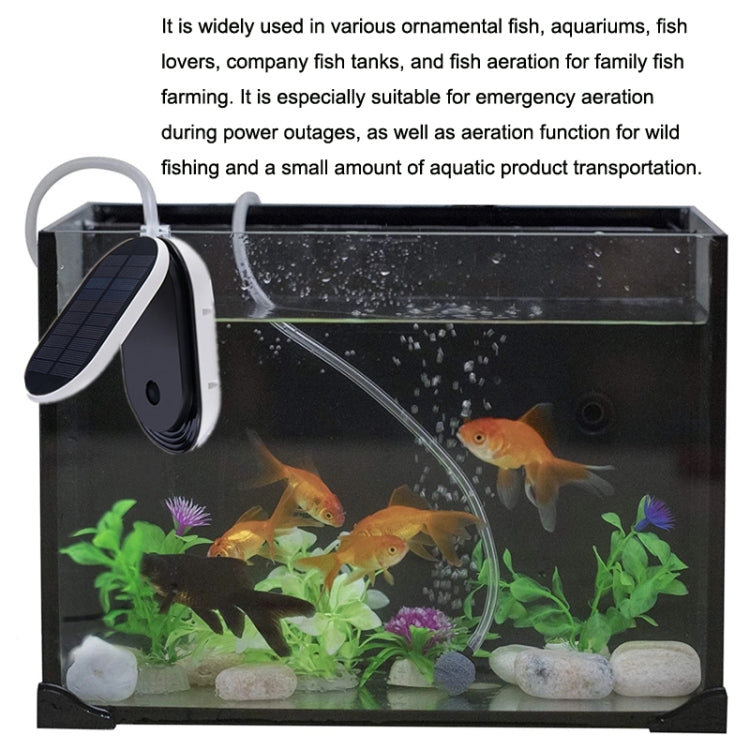

3. It is widely used in various ornamental fish, aquariums, fish lovers, company fish tanks, and fish aeration for family fish farming. It is especially suitable for emergency aeration during power outages, as well as aeration function for wild fishing and a small amount of aquatic product transportation.

Parameter:
1. Solar panel: 5V/1W
2. Battery: 3.7V/3600mAh lithium battery, cycle life 500 times
3. Charging time: about 20 hours for solar charging, about 5 hours for USB charging
4. Air pump rated voltage: 3.5V
5. Air pump rated current: 150MA
6. Air pump bath sound: less than 60dB
7. Air flow: 0.5-1L/min

Circuit parameters:
1. Working voltage range: 3.0V-4.25V
2. Rated operating current: 150MA
3. Discharge protection voltage: 3.0V
4. Charging protection voltage: 4.25V
5. Working mode: third gear (continuous third gear oxygenation, continuous low-level oxygenation, intermittent oxygenation for 10 seconds and stop for 10 seconds, repeat cycle)

Instructions for use:

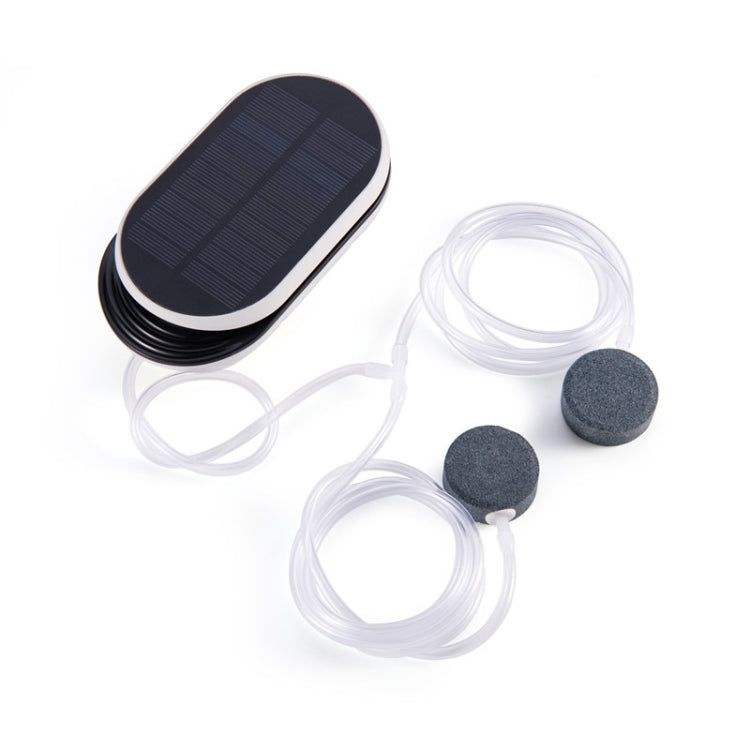

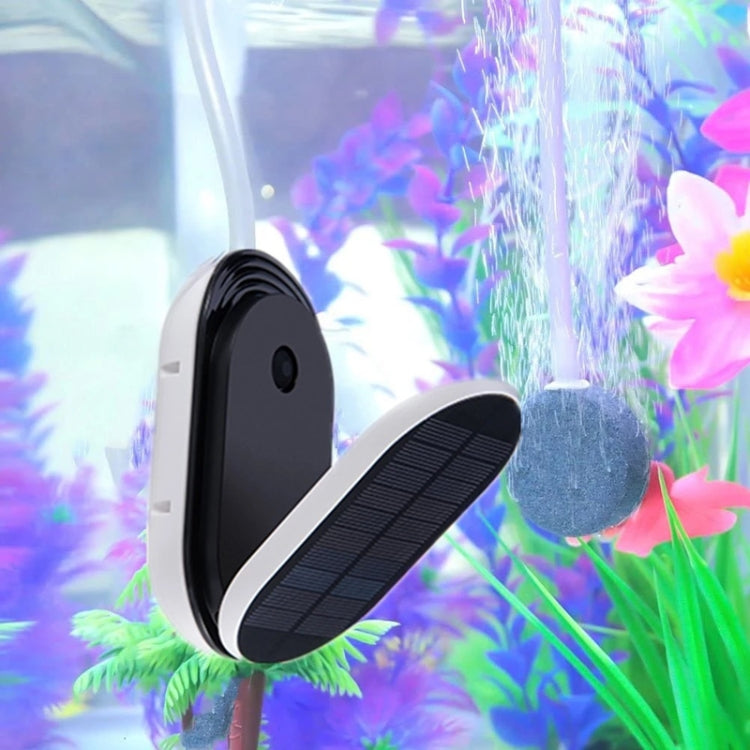

Connect the air stone with the vent hole and put it into the water body that needs oxygenation. The solar panel faces the sunlight, and there is no obstruction between the solar panel and the sunlight. Press the POWER switch, and the oxygenation pump will start to work

Things to note:
1. This product is an electronic product. The main part of the oxygen booster cannot be placed in water, and the diversion hole cannot be blocked.
2. This product is a solar product, please face the solar panel to the sun, and ensure that there is no shelter between the solar panel and the sun. The charging speed is related to the intensity of sunlight. Regularly cleaning the dirt on the solar cells can improve the charging efficiency
