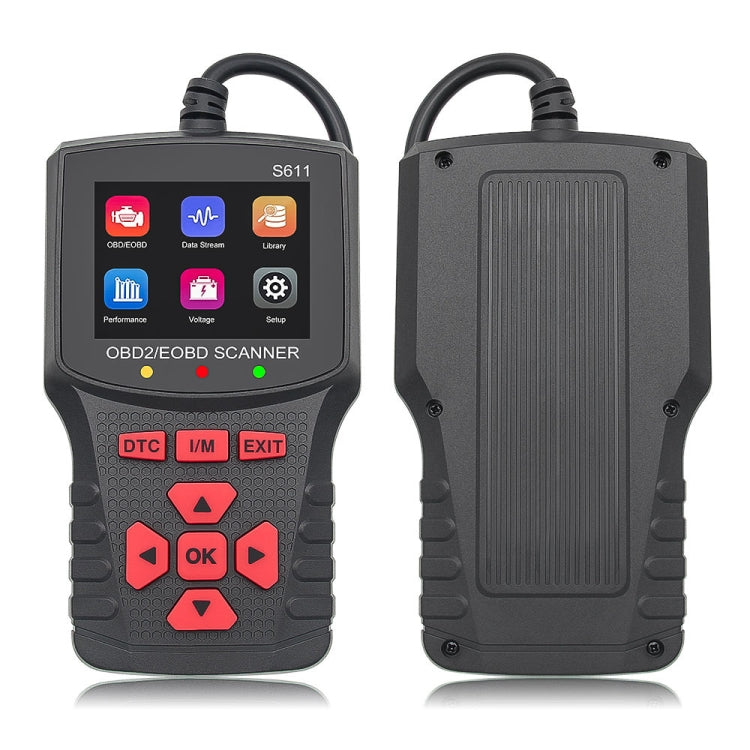

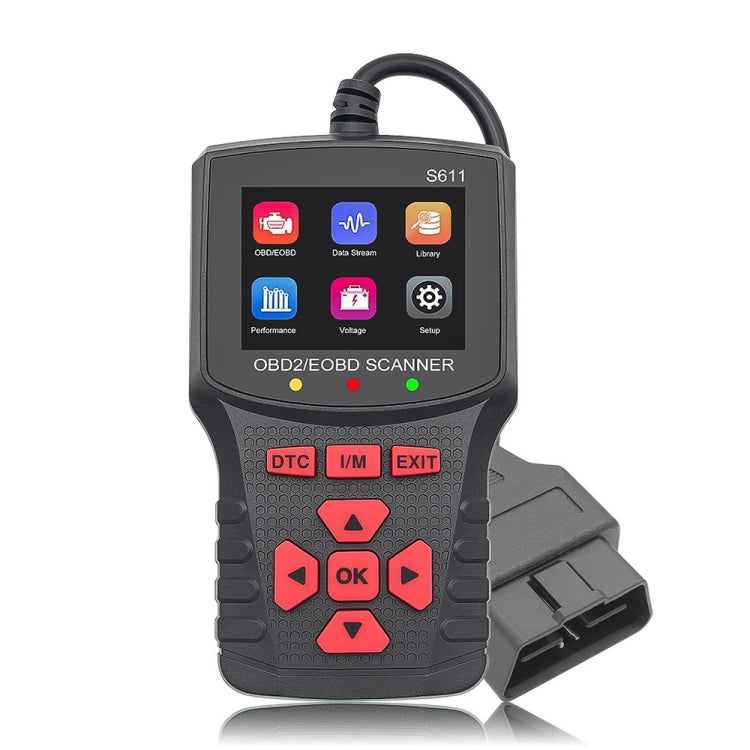

OBD/EOBD Car Handheld Intelligent Tester, S611

1. Working voltage: 9~16V
2. Working current: 92~111mA
3. Eight languages: English, German, Italian, Dutch, French, Spanish, Chinese, Russian

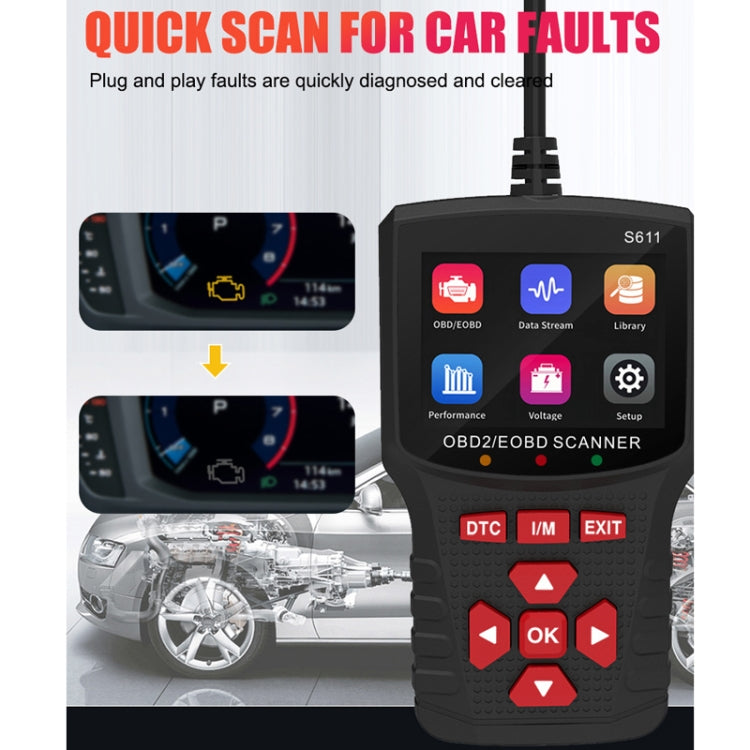

4. Quickly scan car faults, plug and play, quick fault diagnosis and clearing

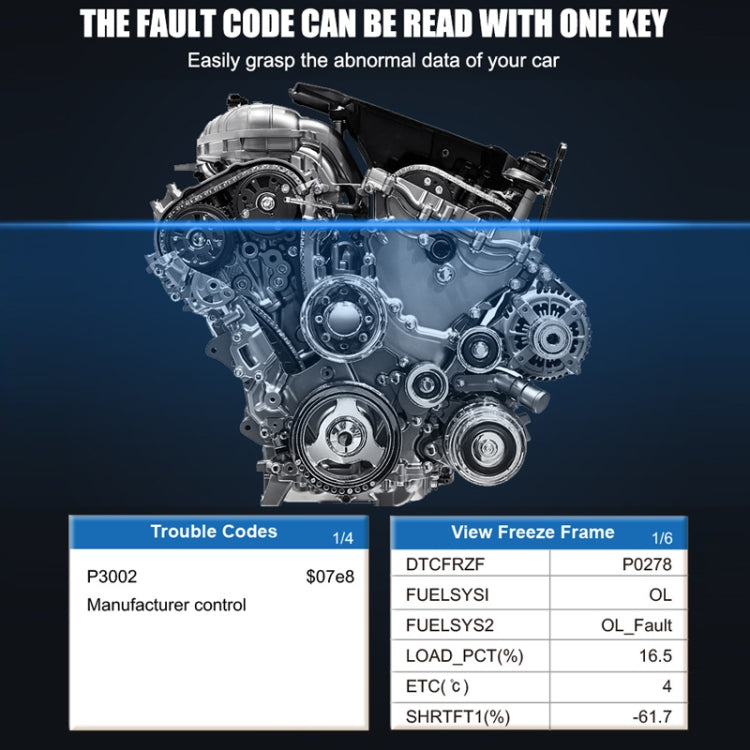

5. One-click reading of car fault codes, easy to grasp car abnormalities

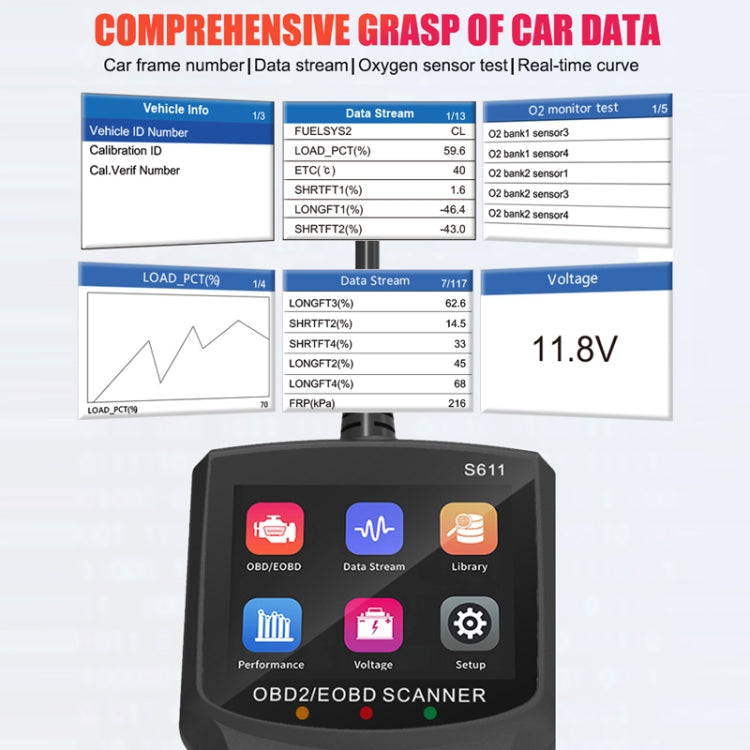

6. Comprehensive grasp of car data, car frame number, data flow, oxygen sensor test, real-time curve

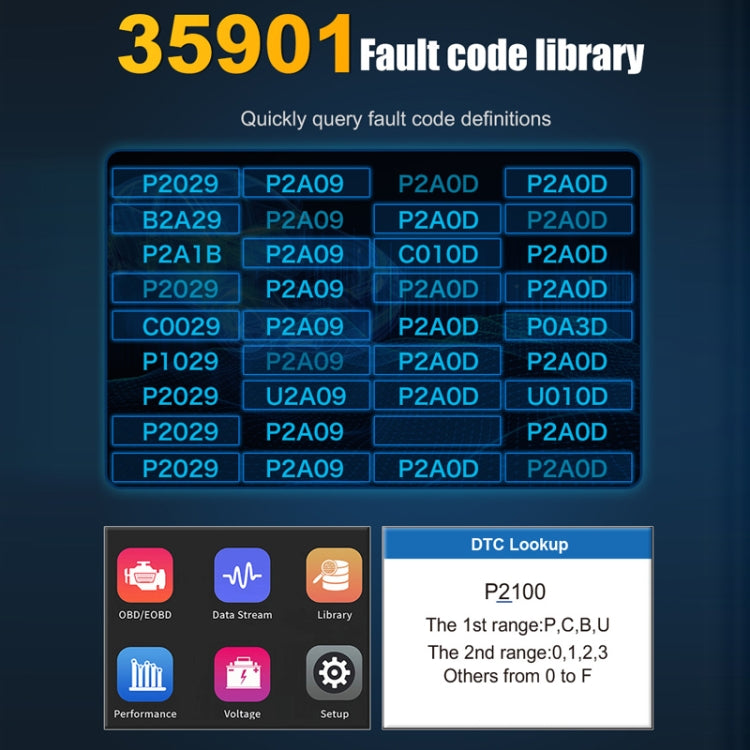

7. Built-in 35901 fault codes, quick query of fault code definitions

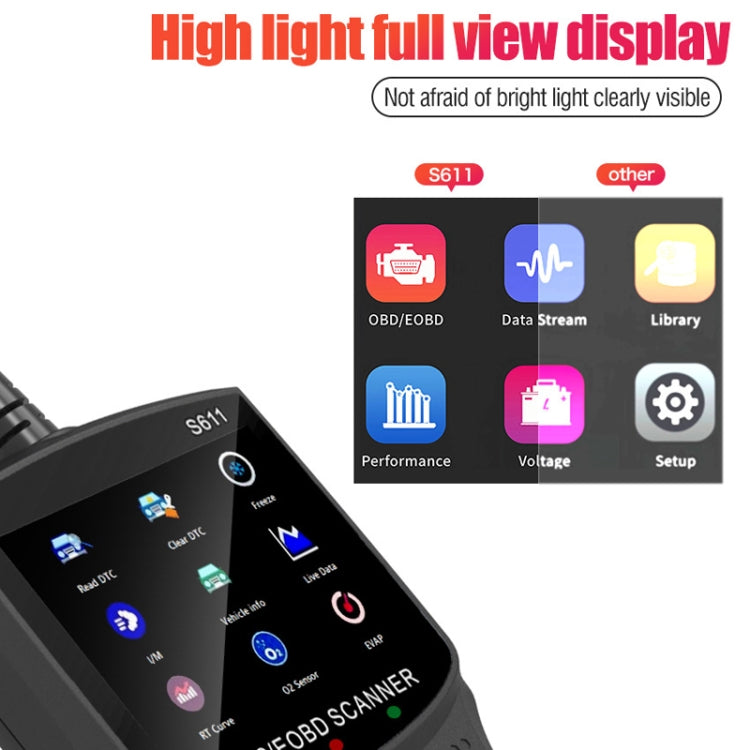

8. High-brightness full-view display, not afraid of strong light, clearly visible

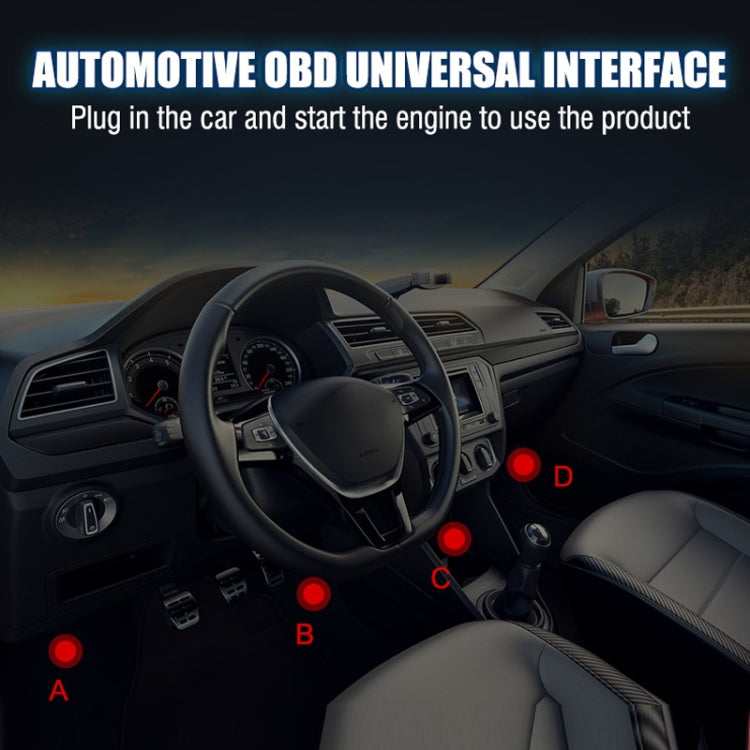

9. Car OBD universal interface, plug in the car and start the engine to use the product
10. Size: 168x89x24 mm

Support all models that comply with the OBDII protocol:
1. Engine fault diagnosis
2. Engine fault clearing
3. Fault freeze frame
4. 1/M ready
5. Vehicle information
6. Real-time data stream
7. Real-time curve graph
8. Oxygen sensor test
9. EVAP test
10. Fault code query
11. Performance test
12. Battery voltage test
13. High brightness full-view display

Supported protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. IS09141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (1lbit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
