Description
Feature:
- The motion detector uses sensitive detectors and integrated circuits. With automation, convenience, safety, energy saving and practical functions. It uses infrared energy from humans as a control signal source, and when someone enters the detection area, the load can be activated immediately. It can automatically recognize day and night. It is easy to install and versatile.
Description:
- The delay is automatically turned off in the dark, and when entering/exceeding the sensing range, it will automatically turn on/off within a 15s adjustable delay time.
Application areas:
- It is suitable for automatic lighting of corridors, corridors, bathrooms, basements, warehouses, garages and other places, as well as automatic control of automatic ventilation fans and other electrical appliances.
Temperature compensation:
- The temperature compensation chip shortens the sensing distance affected by temperature.
Specification:

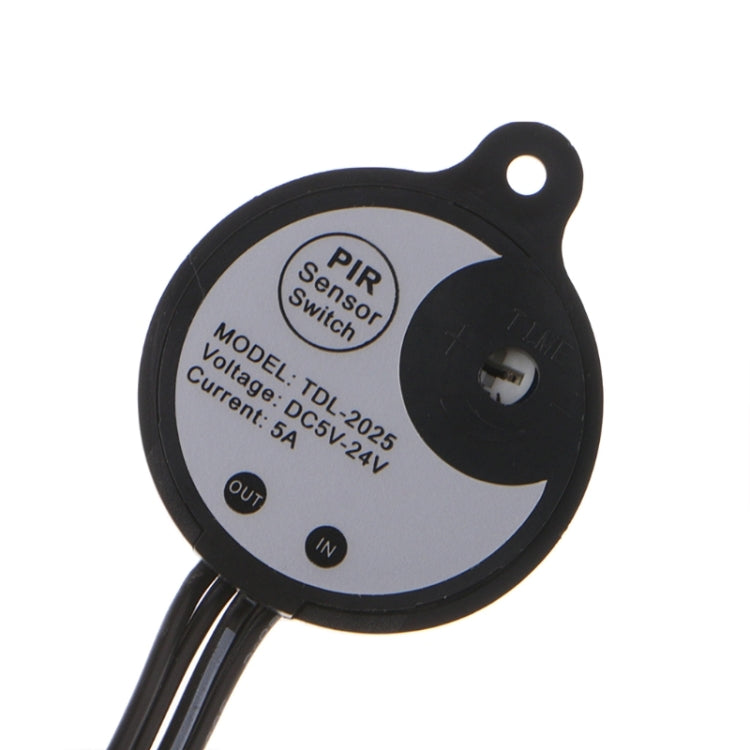

1. Model: TDL-2025-B
2. Material: plastic

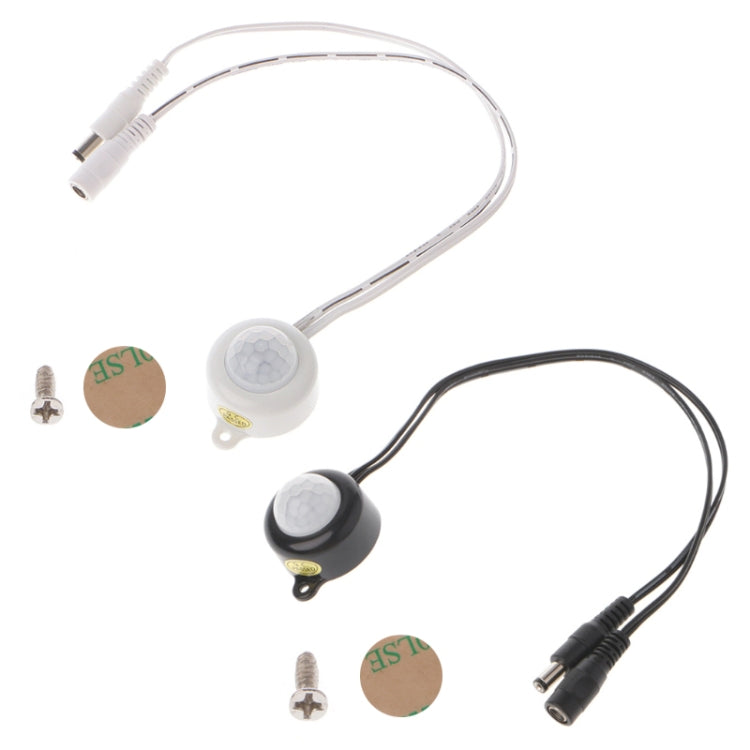

3. Project color: black/white
4. Working voltage: 12V
5. Output current: 5A
6. Time range: 15s (adjustable)
7. Working temperature: -15-50 degrees Celsius
8. Quiescent current: <50Ī¼A
9. Sensing range: 3-5m
10. Induction distance: 5-7m
11. Induction angle: 140 degree cone angle

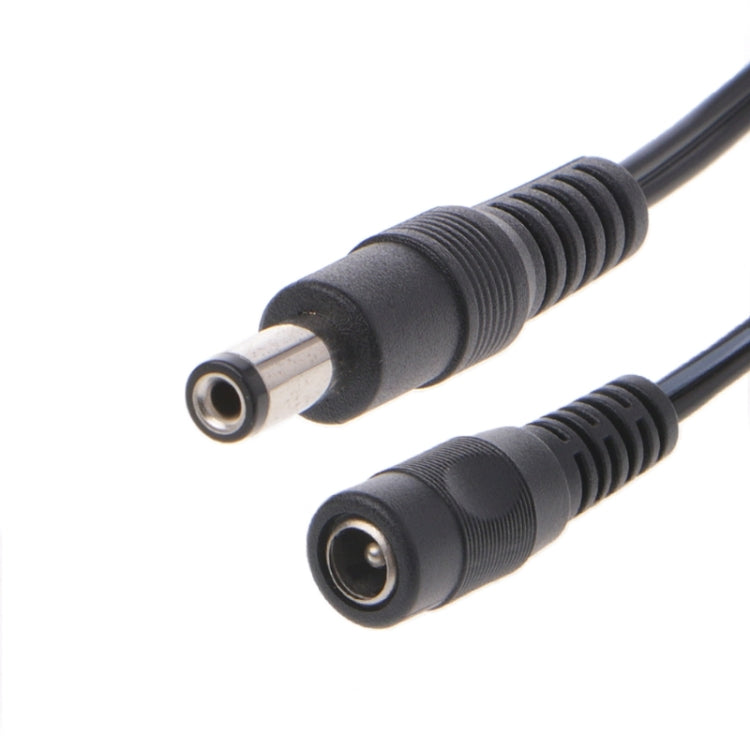

12. Interface type: DC interface

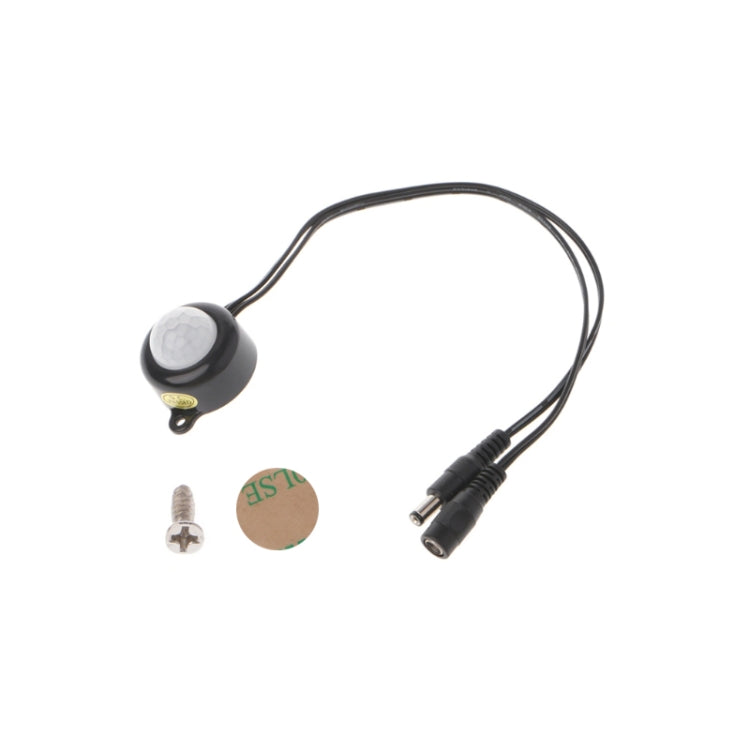

Package Included:
1x switch sensor
1x tape
1x screw
- The motion detector uses sensitive detectors and integrated circuits. With automation, convenience, safety, energy saving and practical functions. It uses infrared energy from humans as a control signal source, and when someone enters the detection area, the load can be activated immediately. It can automatically recognize day and night. It is easy to install and versatile.
Description:
- The delay is automatically turned off in the dark, and when entering/exceeding the sensing range, it will automatically turn on/off within a 15s adjustable delay time.
Application areas:
- It is suitable for automatic lighting of corridors, corridors, bathrooms, basements, warehouses, garages and other places, as well as automatic control of automatic ventilation fans and other electrical appliances.
Temperature compensation:
- The temperature compensation chip shortens the sensing distance affected by temperature.
Specification:
1. Model: TDL-2025-B
2. Material: plastic
3. Project color: black/white
4. Working voltage: 12V
5. Output current: 5A
6. Time range: 15s (adjustable)
7. Working temperature: -15-50 degrees Celsius
8. Quiescent current: <50Ī¼A
9. Sensing range: 3-5m
10. Induction distance: 5-7m
11. Induction angle: 140 degree cone angle
12. Interface type: DC interface
Package Included:
1x switch sensor
1x tape
1x screw
