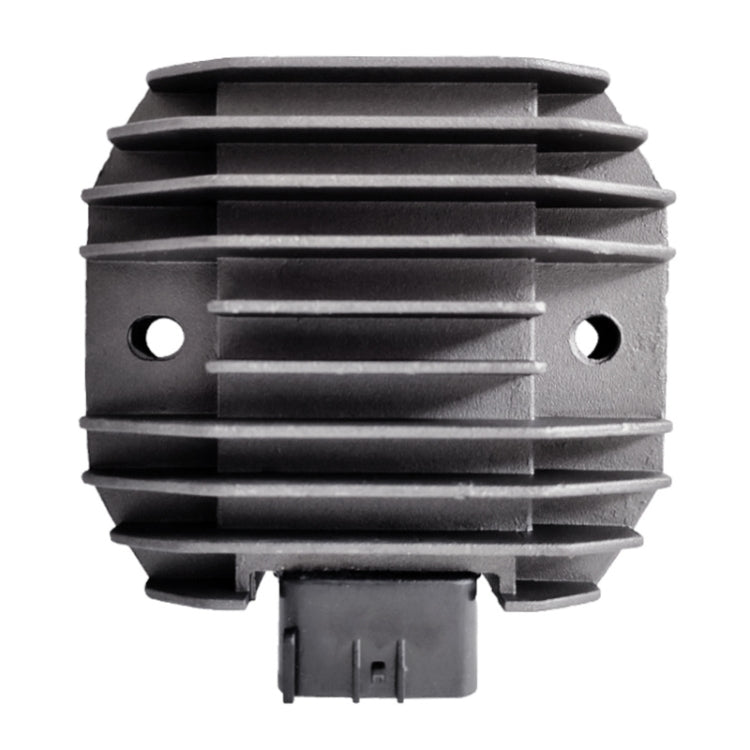

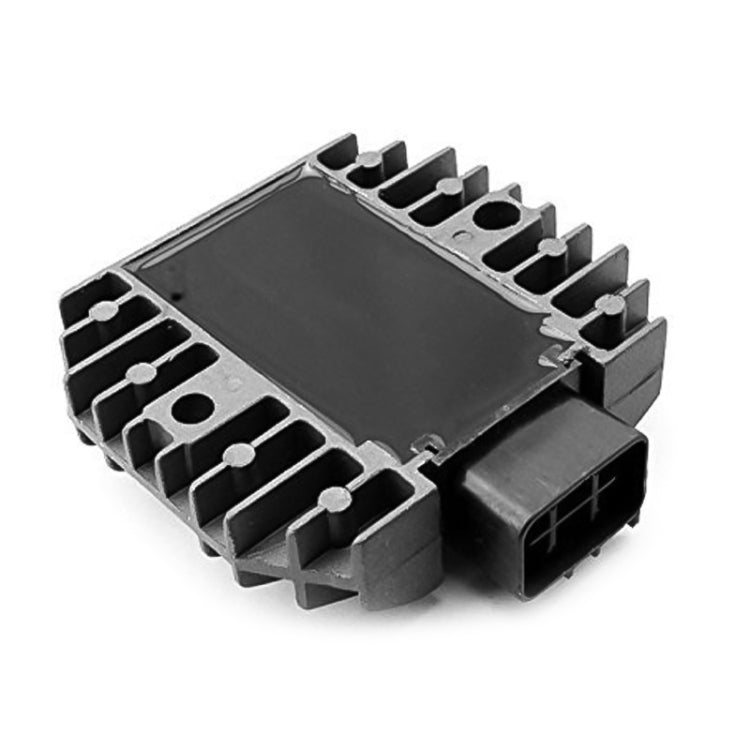

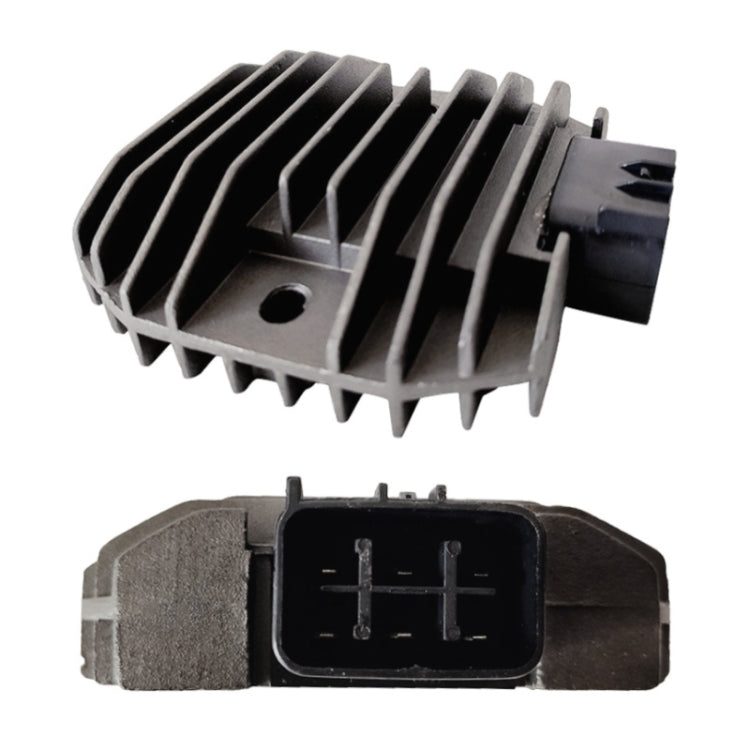

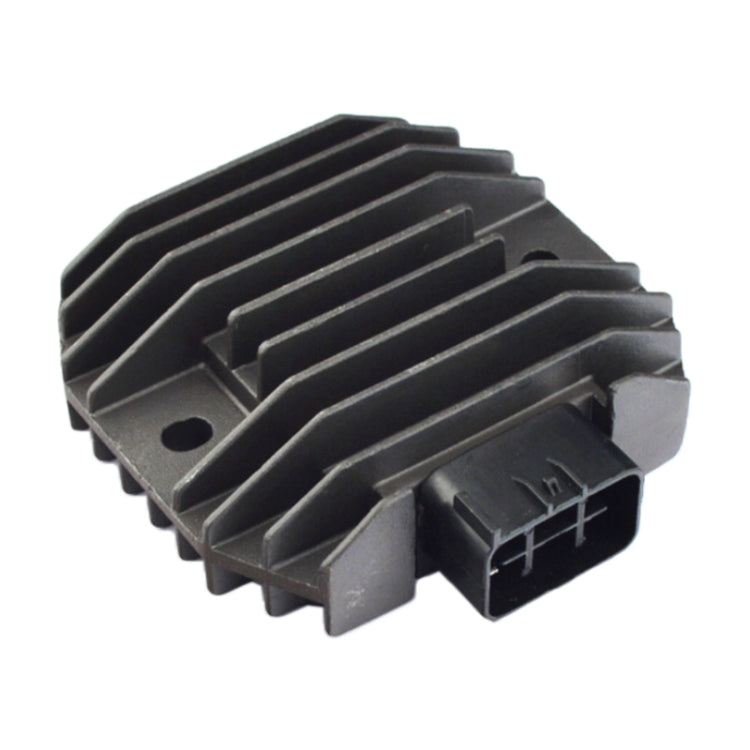

2005.0 Motorcycle Rectifier For Yamaha XVS650 / KAWASAKI 600 / Suzuki AN400, 2005.0

1. Weight: 210g
2. Wire length: 25cm
3. Output voltage: 14.5v

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out

Applicable models:
For SKU254617 5BN-81960-00-00;
For Yamaha XVS1600 ATLER/ATLERC Road Star Silverado Limited
For Yamaha XVS1600 ALER/ALERC Road Star Limited Edition
For Yamaha XVS1100 V-Star 1100 Classic
For Yamaha XVS1600 ASM/ASMC Road Star MM Limited
For Yamaha XVS1600 ATN/ATNC/ATL/ATLC/ATM/ATMC Road Star Silverado
For Yamaha XVS1600 ASP/ASPC/ASR/ASRC Road Star Midnight
For Yamaha XVS1600 ATR/ATRC Road Star Silverado
For Yamaha XVS1600 ASN/ASNC Road Star Midnight
For Yamaha XVS1100 V-Star 1100
For Yamaha XVS1600 AP/APC/AR/ARC Road Star
For Yamaha XVS1600 AL/ALC/AM/AM/AN/ANC Road Star
For Yamaha YXR660 FAHS RHINO 660
For Yamaha SX700M SX Viper Mtn
For Yamaha XVS650 V-Star Classic
For Yamaha YFM700R RAPTOR 700
For Yamaha YXR660 FAS/FAT RHINO Raptor 700 Used Voltage Regulator Rectifier Regulator 5BN-81960-00-00
For Yamaha YXR660 FAHT RHINO
For Yamaha YFM660 Grizzly 660
For Yamaha YXR45F RHINO 450
For Yamaha SX600/ER SX Venom
For Yamaha VT600 Venture
For Yamaha VT700 Venture ,HISUN 700
For Yamaha YFZ450R oe 5BN-81960-00-00
For Yamaha VP300 2003-2004 Yamaha MORPHOUS 250 CP250 06-08 Yamaha MORPHOUS 250 CP250 2006- 2008
For Yamaha BT1100 2002-2006
For Yamaha VP300 2003-2004
For Yamaha GRIZZLY 660 YFM660 2002-2008
For Yamaha GRIZZLY 600 YFM600 1999-2001
For Yamaha KODIAK 450 YFM450 2003-2006
For Yamaha RHINO 450 YXR45 2006-2009
For Yamaha RHINO 660 YXR660 2004-2007
For Yamaha RAPTOR 700 YFM70 2006-2014
For Yamaha YFM350 YFM 350 GRIZZLY ATV 2007-2008
For Yamaha KODIAK 400 YFM4A 2X4, 4X4 2000-2006
