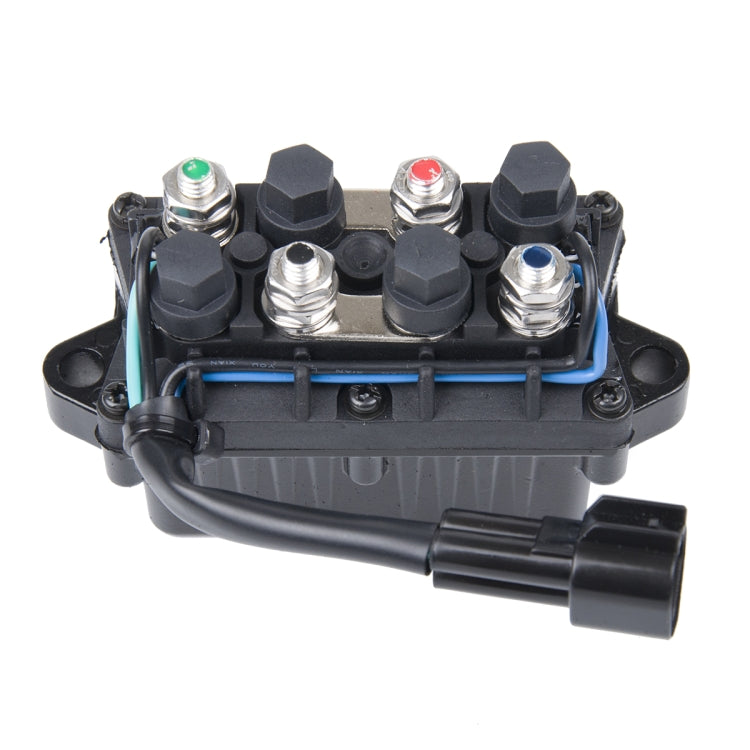

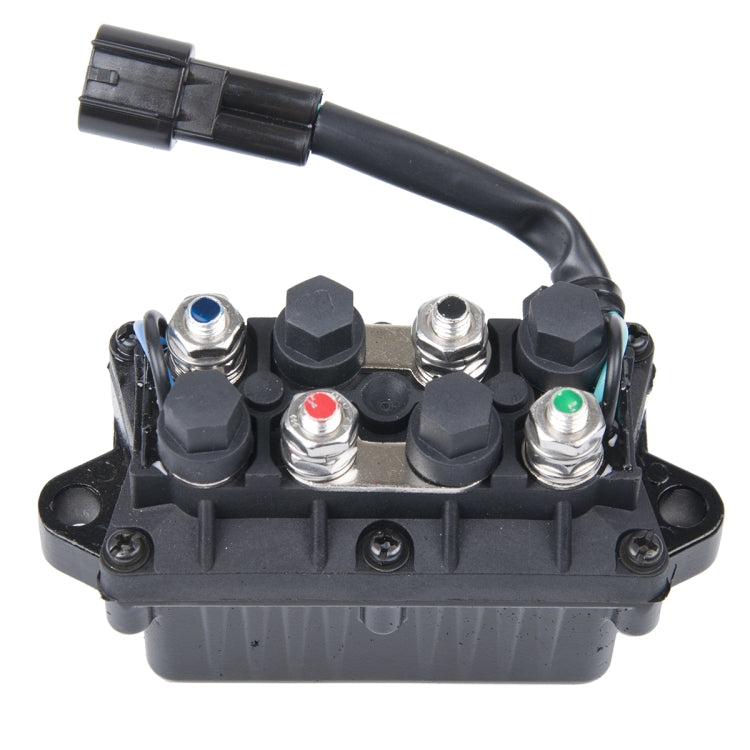

12V / 120A Outboard Lifting Tilt Trim Relay for Yamaha Motors Replacement 61A-81950-00-00 3 PIN Connector, Lifting Tilt Trim Relay

1. Replacement part: 61A-81950-00-00
2. Color??? black
3. Voltage: 12V
4. Current :120A
5. Working mode: Batch-type
6. Connector: DJ7031Y-2.3-11
7. Structure: Non-removable
8. Waterproof rating: IP67
9. Connection way:Red to Power(+),Black to Power(-),Blue(Green) to the motor,you can change the connection of Blue and Green to reach the right lifting direction you want.
10. Fitment for:
YAMAHA 40-90 HP POWER TRIM AND TILT RELAY
F-150 HP 2004-2009
F-225 HP TLR MODEL 2007-2009
F-250 HP 2005-2009
F-25 HP 2009
F-40 HP 2009
F-50 HP 2005-2009
F-60 HP 2005-2009
F-75 HP 2005-2009
F-90 HP 2005-2009
Note:
1. This is just for reference, please check and confirm the OE carefully before purchasing.
2. Please do not remove the 6 fixing screws,forcible removal will lead to damage of the relay
3. The continuous working time should not be more than 1 minute (In practice, it takes less than 15 seconds for the whole process).
