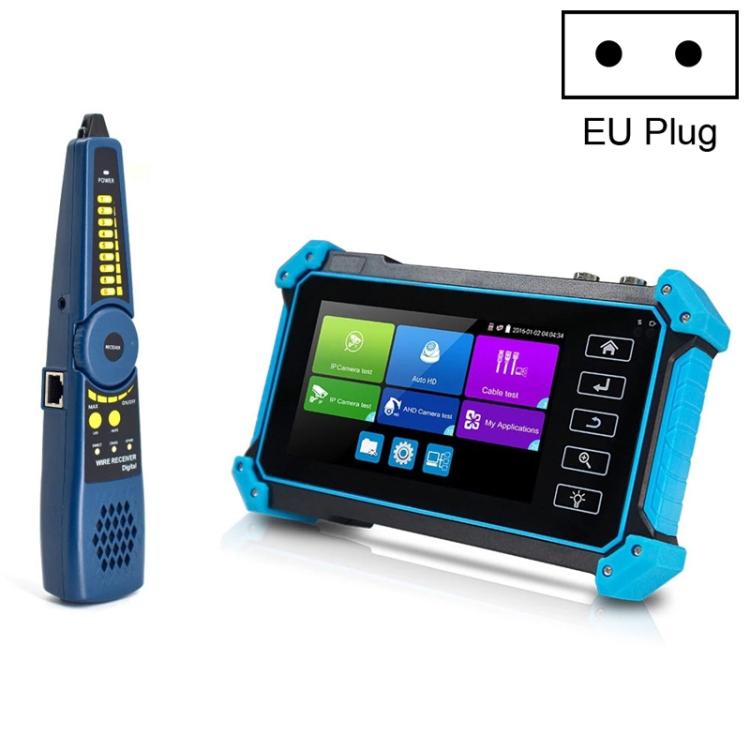

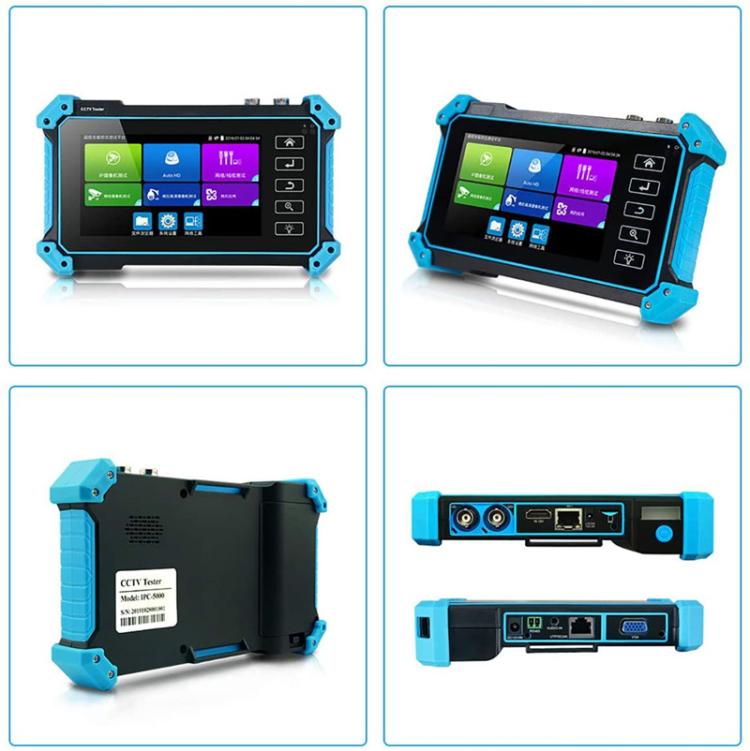

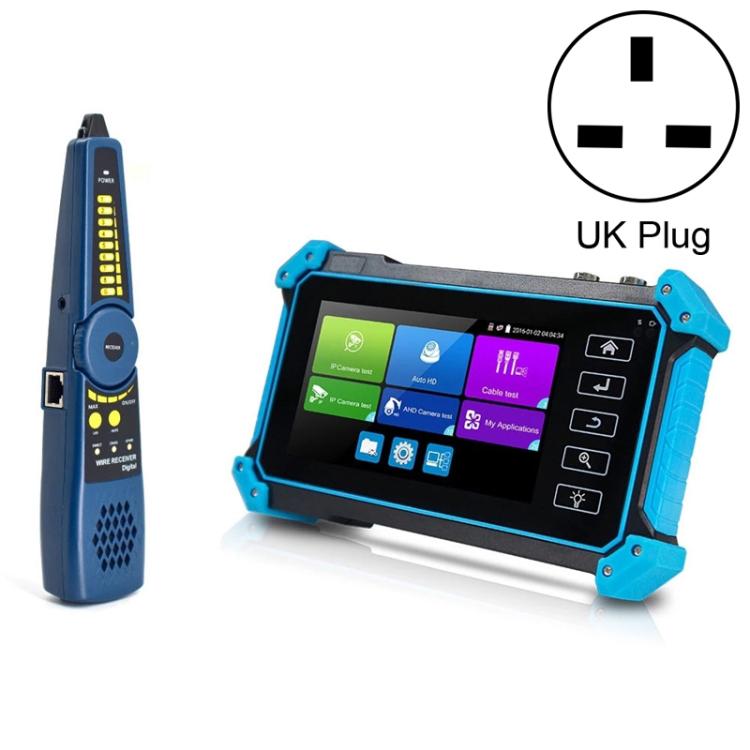

IPC-5200CPlus Network Engineering Treasure Simulated Coaxial SDI Integrated Video Surveillance Tester, US Plug, EU Plug, UK Plug, AU Plug

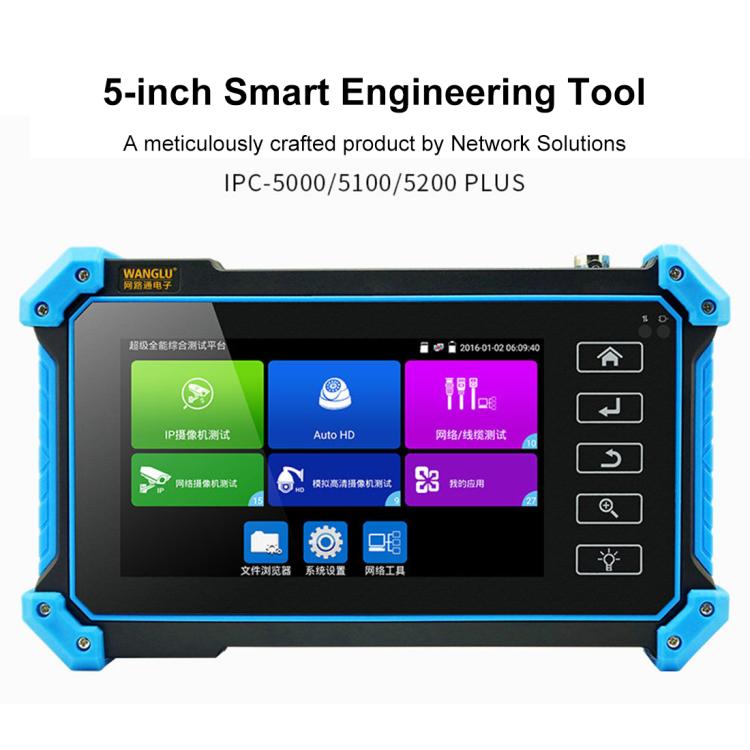

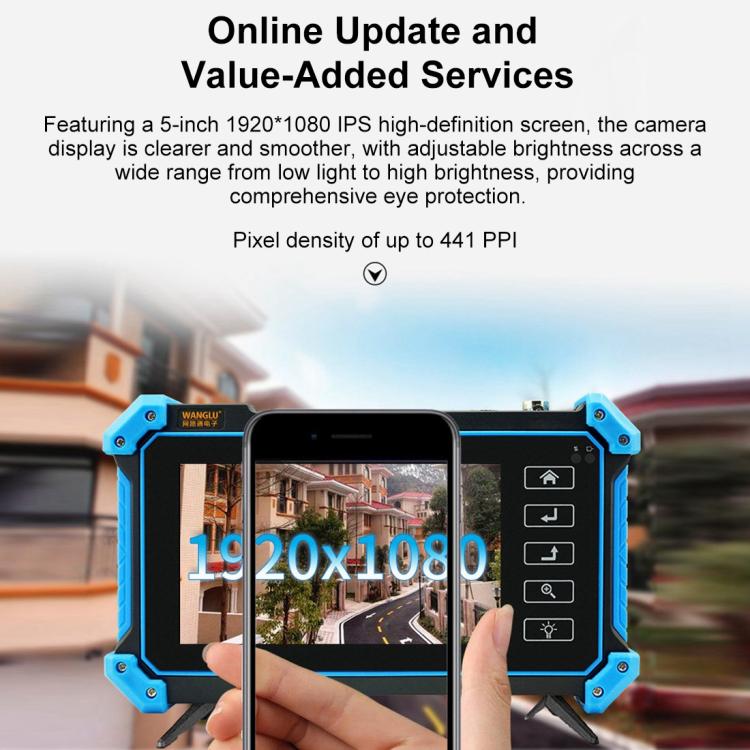

1. Display: 5-inch IPS HD capacitive touchscreen
2. Resolution: 1920x1080
3. Network Port: 10/100/1000M adaptive

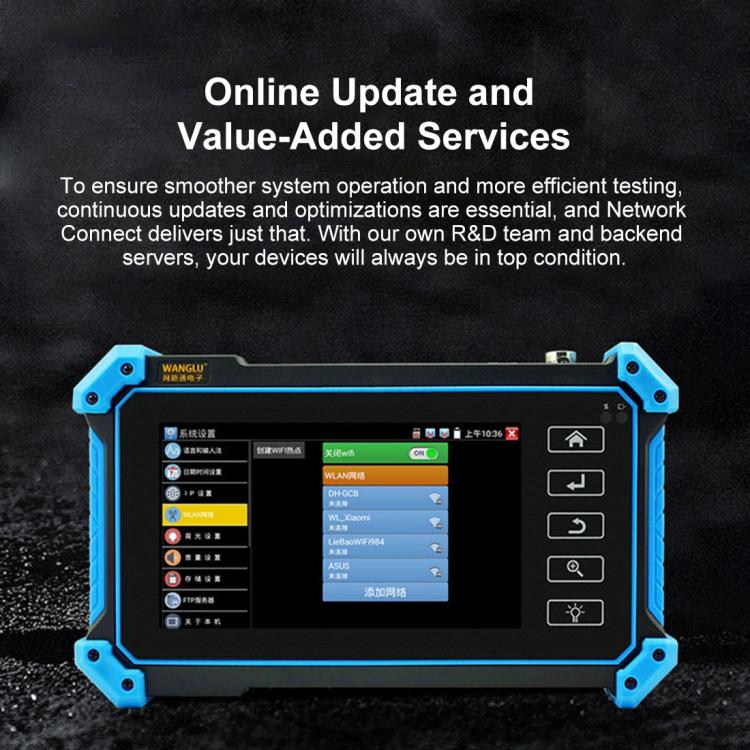

4. WiFi: Built-in wireless WiFi, 150M speed
5. IP Discovery: Finds camera IP address across the entire network segment
6. High-Speed: Automatic login and image playback, supports modifying IP address, channel name, and generating test reports, etc.

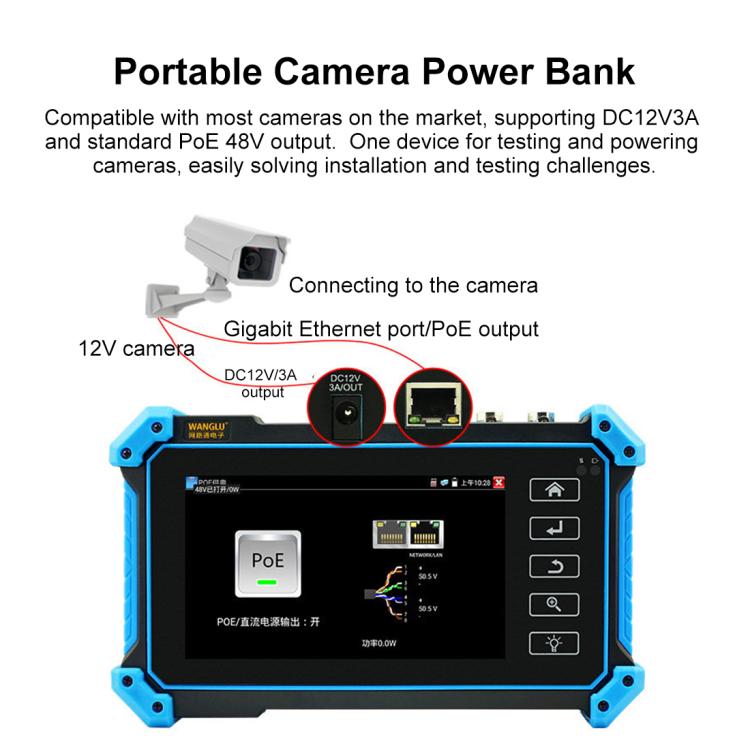

7. External Power Supply: DC12V
8. Battery Power: 3350mAh capacity
9. Charging Time: 3-4 hours

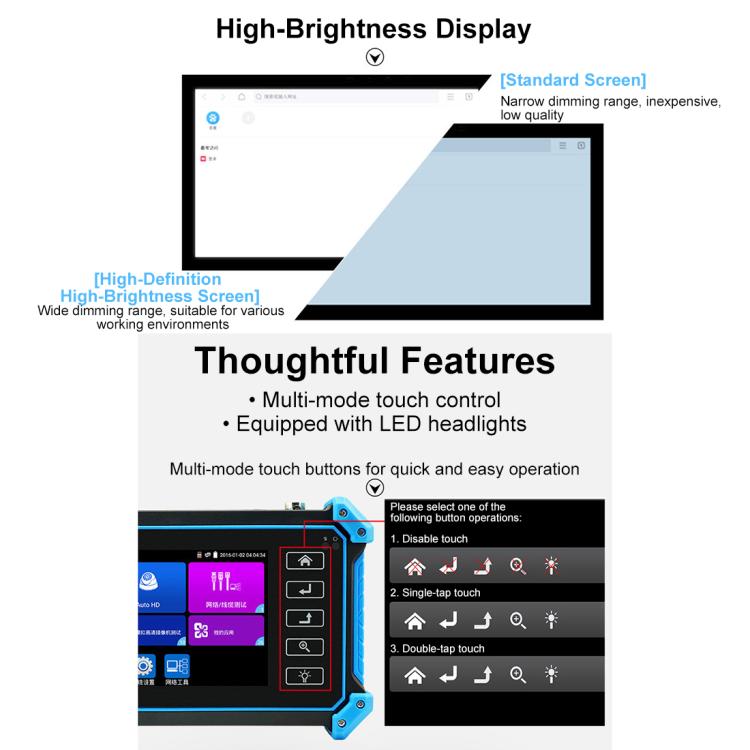

10. Operation Settings: Capacitive touchscreen, Chinese and English OSD menus selectable
11. Operating Temperature: -10?°C to 50?°C
12. Operating Humidity: 30%-90%

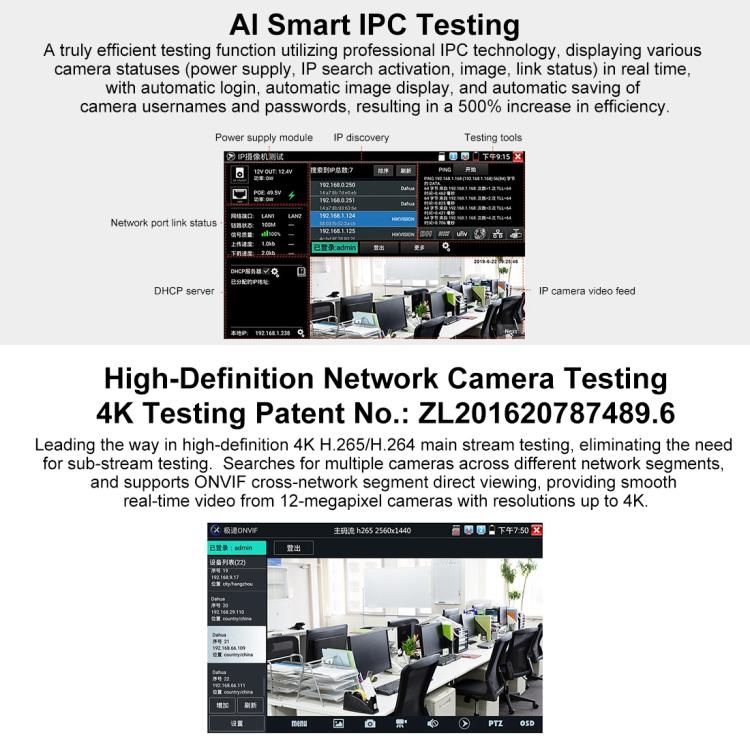

13. H.265/H.265+, 4K main stream testing, 1200W network camera testing

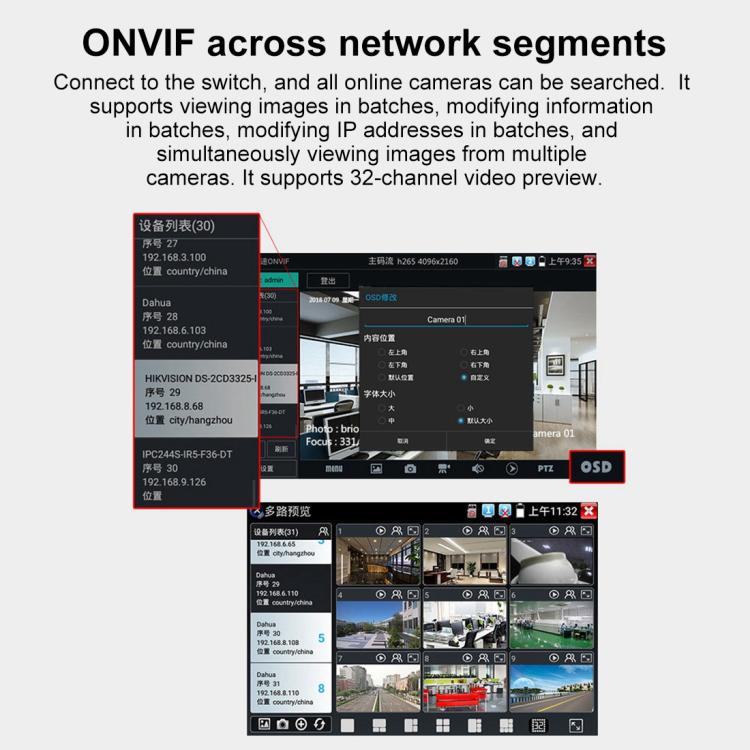

14. High-speed ONVIF, generating test reports, customizing channel names

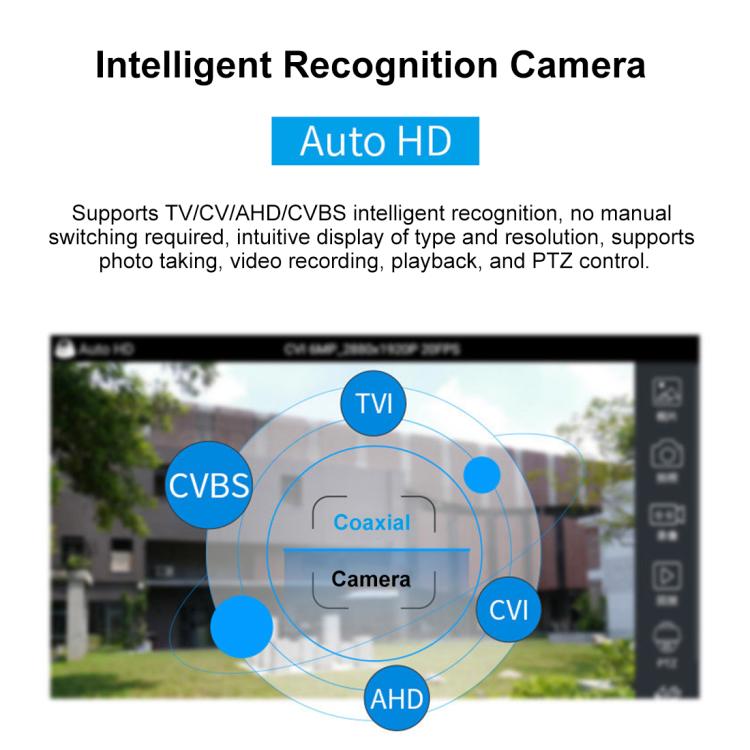

15. AutoHD automatically detects and displays the type and resolution of the connected HD camera.
16. Upgraded coaxial HD 4.0, TVI/CVI/AHD 8MP testing.

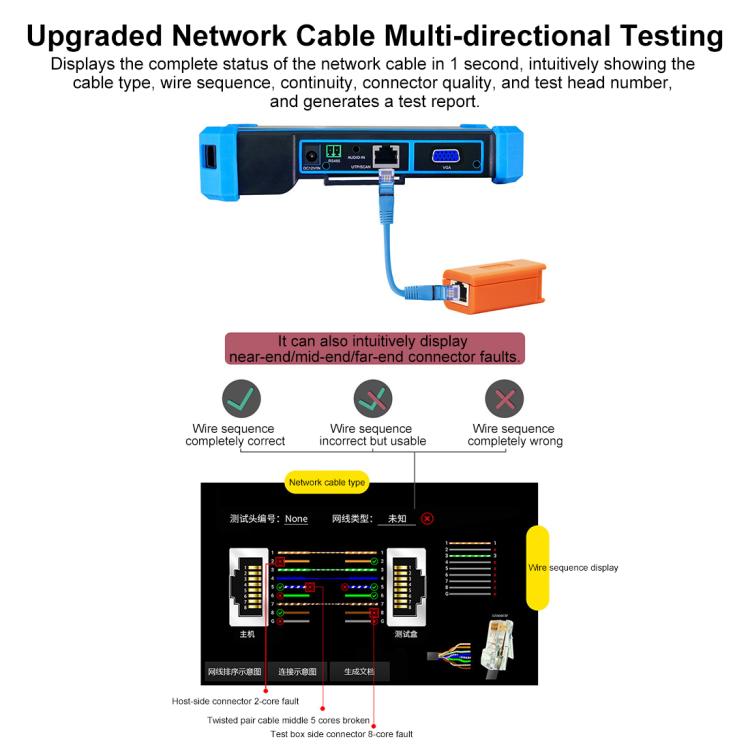

17. Supports network cable sequence detection, far/mid/near end error detection.

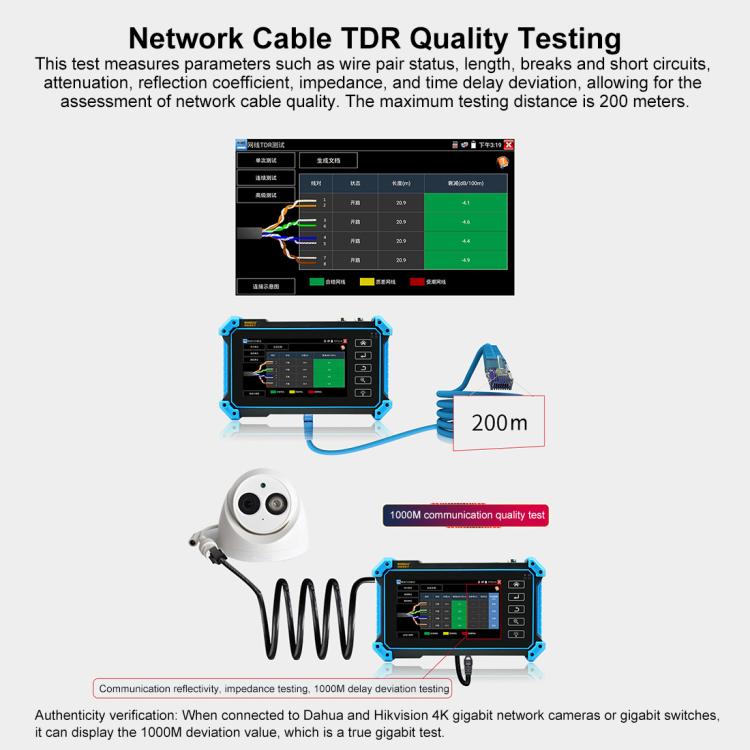

18. Supports network cable TDR testing, network cable open/short circuit testing, and quality testing.

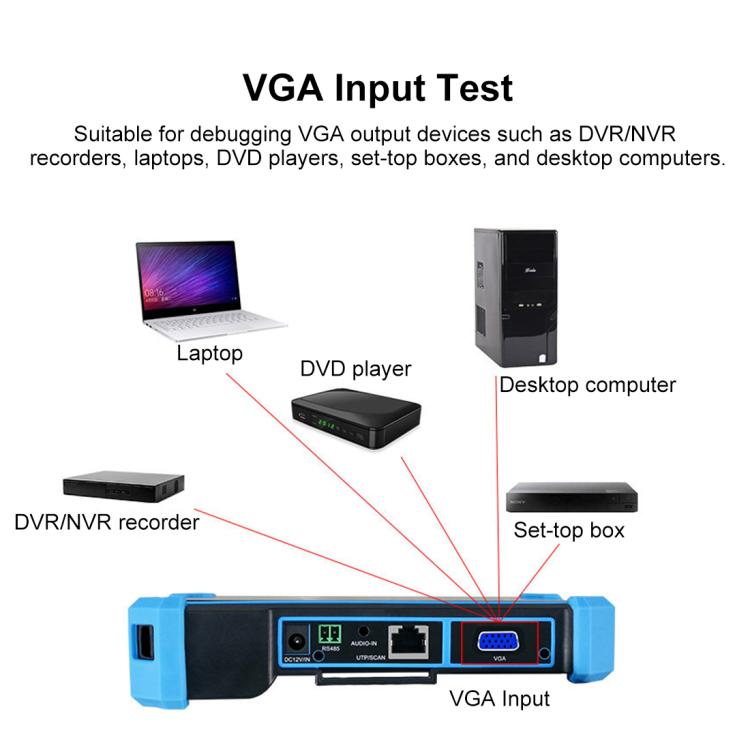

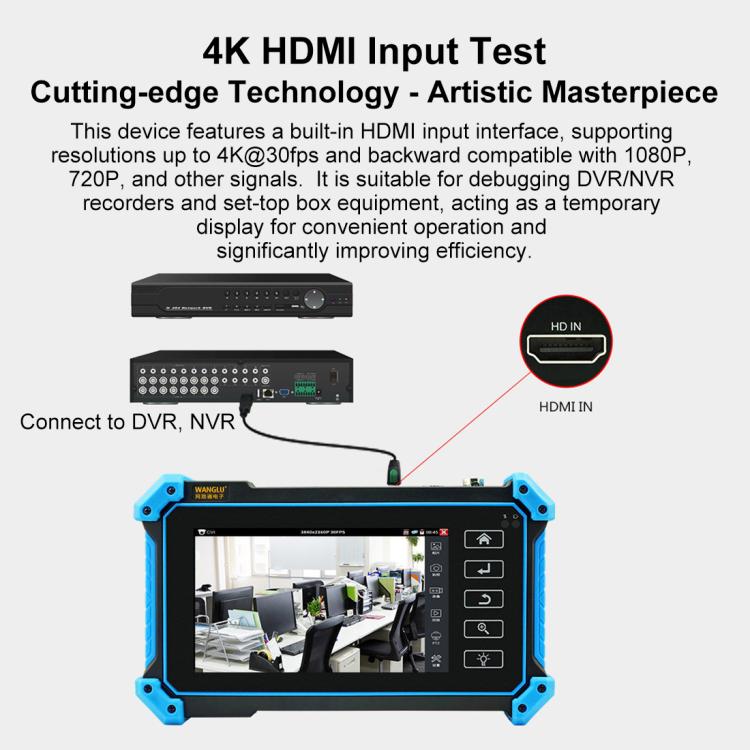

19. 4K/30fps HDMI input, 2K/60fps VGA input.

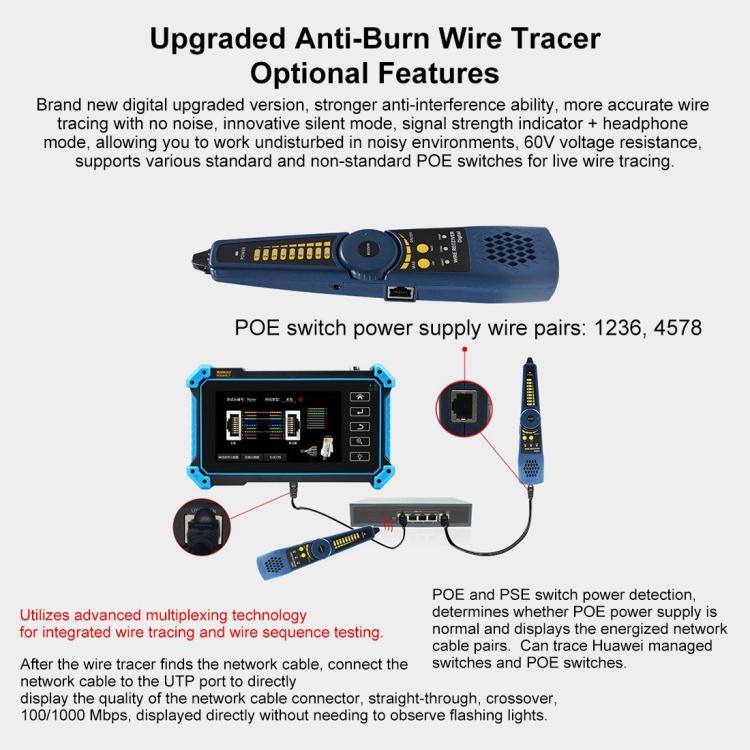

20. Enhanced digital cable finder, simultaneous testing of cable finding and sequencing.
21. Display supports Chinese and English languages.
