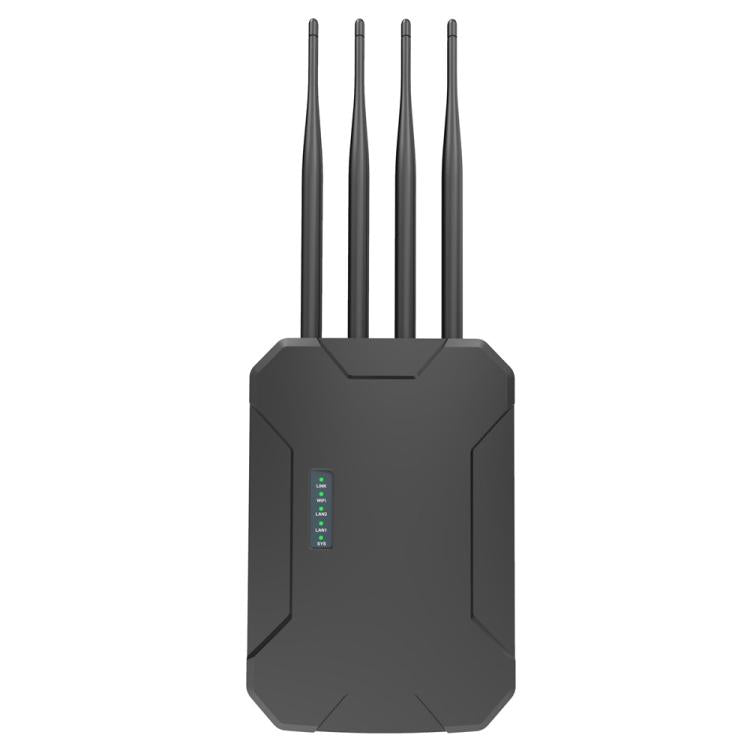

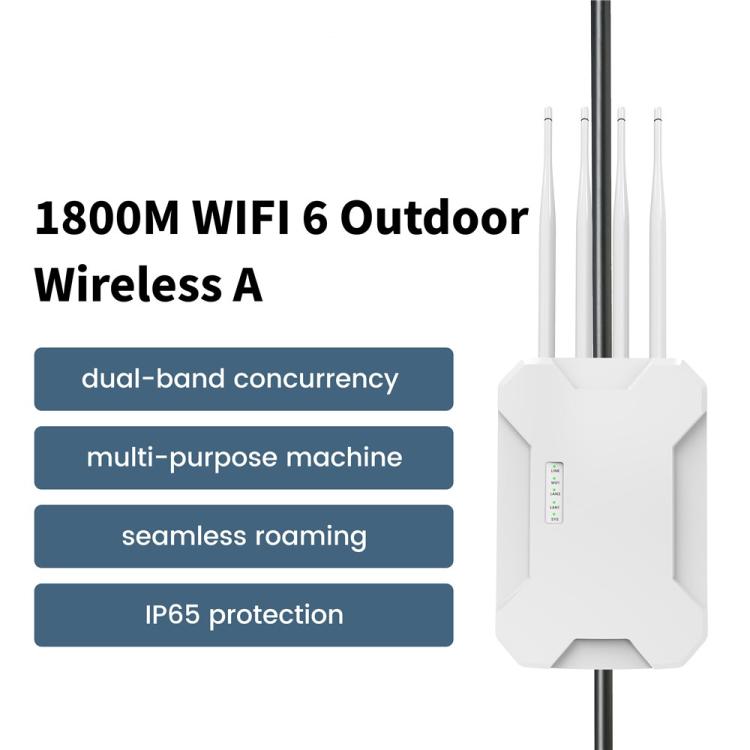

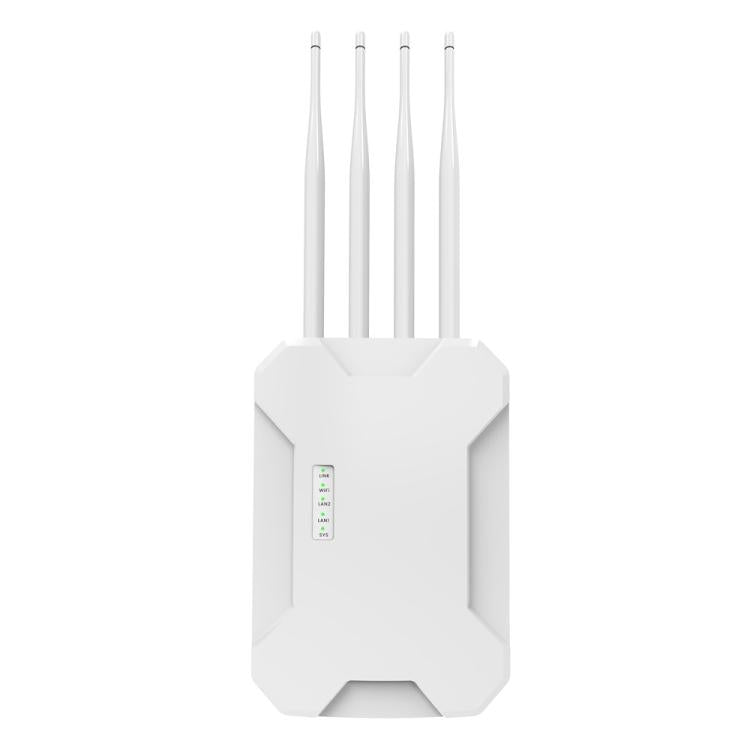

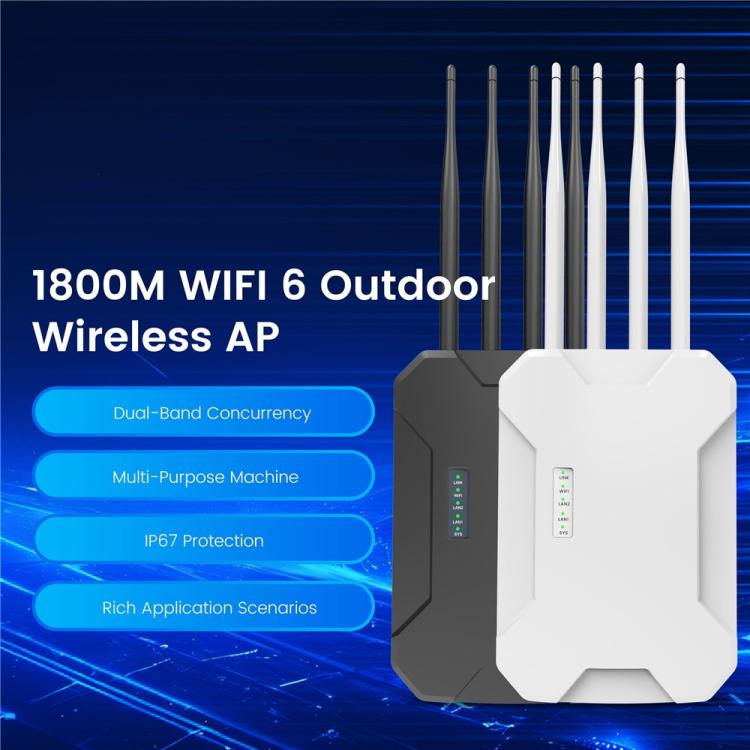

Description

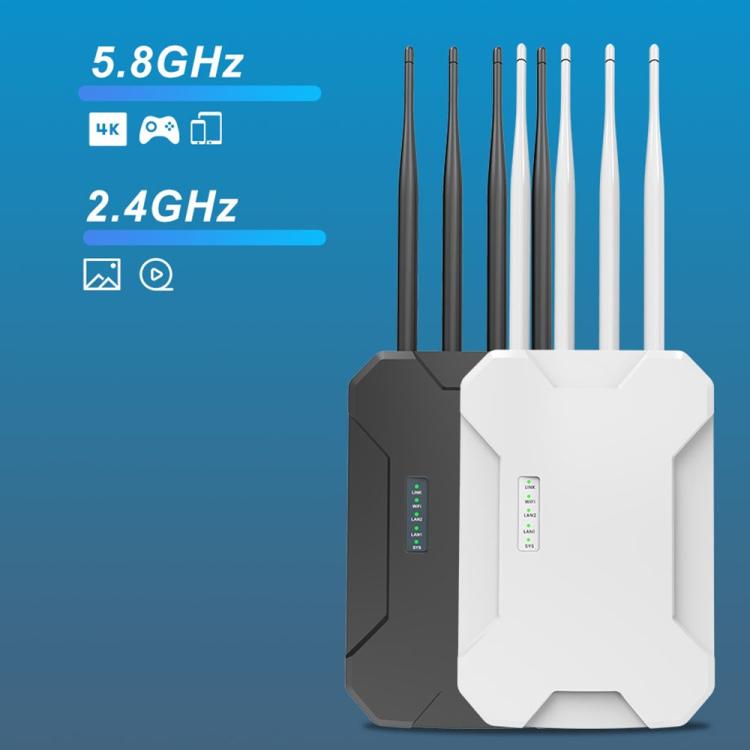

1.WiFi 6 Dual-Band Technology:Equipped with dual-core processor delivering 1800Mbps wireless transmission rate, supporting both 2.4GHz (574Mbps) and 5.8GHz (1201Mbps) for faster and more stable connections.
2.IP65 Weatherproof Design:Industrial-grade protection against water, dust, corrosion, and UV rays, ensuring reliable outdoor performance in harsh environments from -40 to +55 degree centigrade.

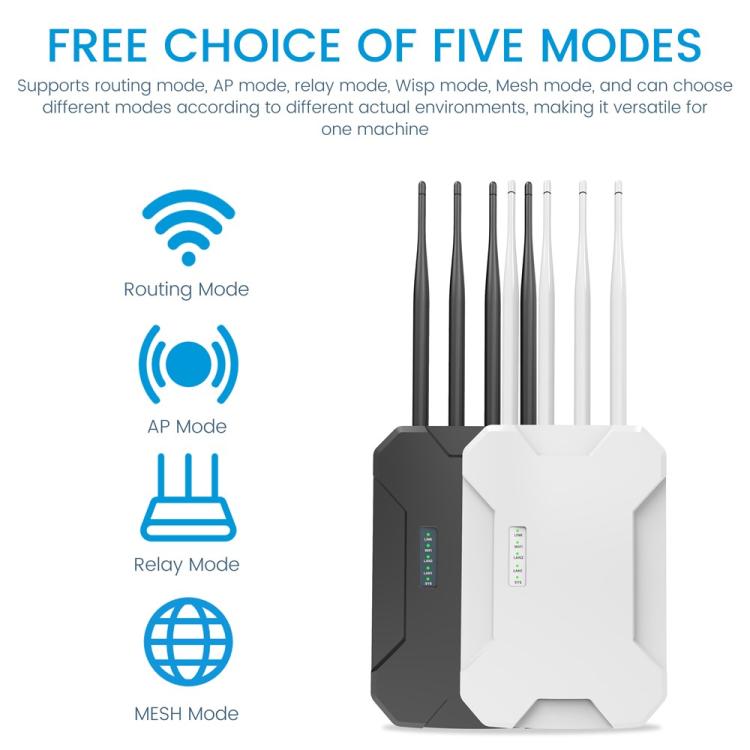

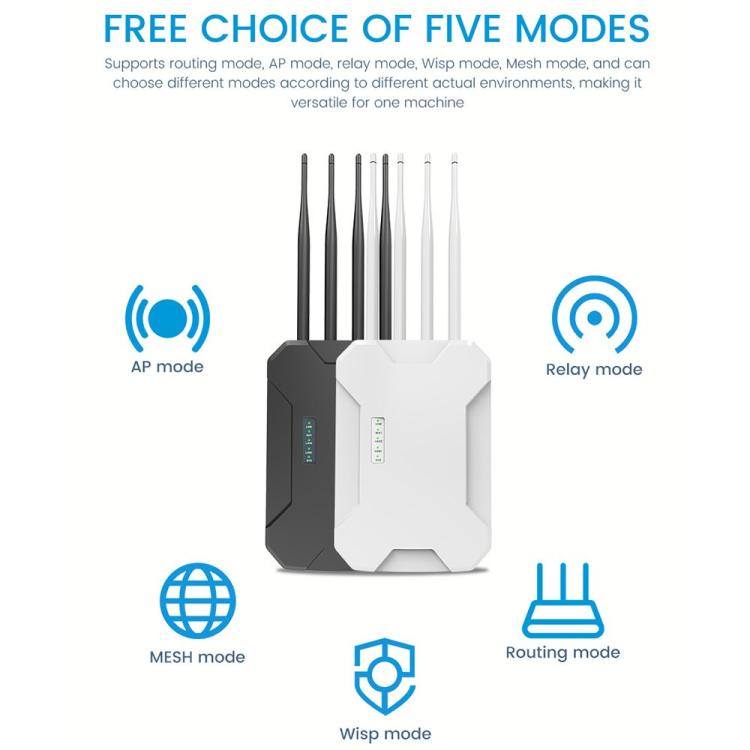

3.Five Operation Modes:Versatile deployment supporting Router, AP, Repeater, WISP, and Mesh modes for flexible network configuration in various scenarios.
4.High-Gain Omnidirectional Antennas:Four 7dBi external antennas (2x2.4GHz + 2x5.8GHz) provide extended coverage up to 500 meters with superior signal strength.
5.Advanced Network Features:Supports seamless roaming, automatic channel selection, weak signal suppression, and up to 150+ wireless device connections simultaneously.
6.Multiple Power Supply Options:Flexible powering with 24V POE, 48V POE, or DC 12V/1A support, featuring built-in 15kV lightning protection for enhanced safety.
7.Gigabit Ethernet Ports:Two 10/100/1000Mbps auto-adaptive WAN/LAN ports with POE support for high-speed wired connections and easy installation.

Specifications:
1.Chipset: MT7621AT + MT7975 + MT7905
2.Memory: 256MB DDR3
3.Storage: 16MB Flash
4.Wireless Standards: 2.4G IEEE 802.11 b/g/n/ax, 5G IEEE 802.11 a/n/ac/ax
5.Frequency Range: 2.4GHz (2.412-2.472GHz), 5.8GHz (5.180-5.825GHz)
6.Transmission Power: 20dBm (2.4G/5.8G)
7.Network Ports: 2x10/100/1000M Auto WAN/LAN with POE
8.Antennas: 4x7dBi External Omnidirectional
9.Power Consumption: Less than 10W
10.Waterproof Rating: IP65
11.Lightning Protection: 15kV ESD
12.Operating Temperature: -40 to +55 degree centigrade

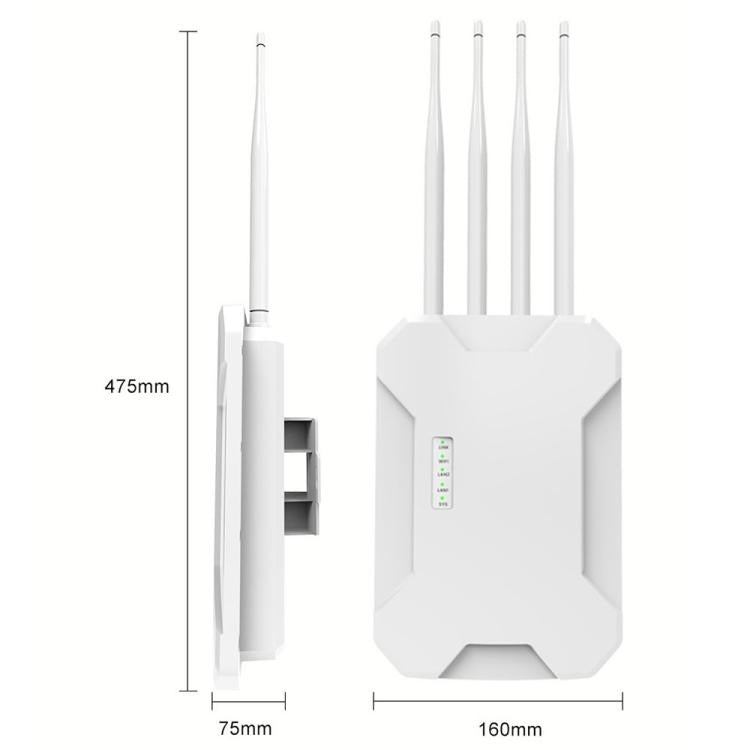

13.Dimensions: 160x75x475mm (with antennas)
14.Coverage Range: 0-500 meters
Specification:
Package Weight
One Package Weight 0.91kgs / 2.02lb
One Package Size 31.3cm * 16.3cm * 7.7cm / 12.32inch * 6.42inch * 3.03inch
Qty per Carton 20
Carton Weight 19.70kgs / 43.43lb
Carton Size 65cm * 42cm * 35cm / 25.59inch * 16.54inch * 13.78inch
Loading Container 20GP: 279 cartons * 20 pcs = 5580 pcs
40HQ: 647 cartons * 20 pcs = 12940 pcs
