Description

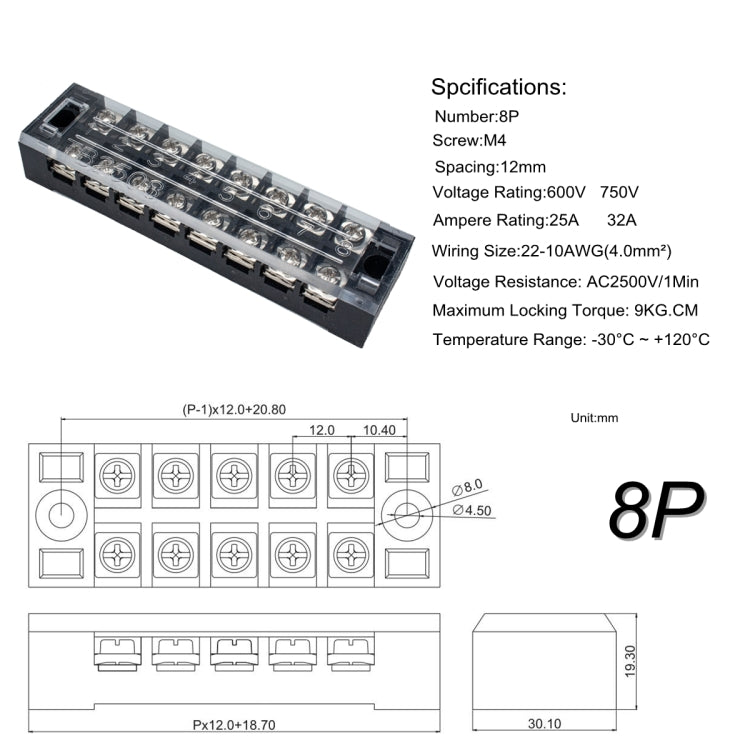

1. Product material: plastic PBT UL94V-0, steel tinned
2. Specifications: 25A 600VAC
3. Withstand voltage: AC2500V / 1Min
4. Using the warp: 22-10AWG (4.0 square millimeter)
5. Maximum torque: 9KG.CM
6. Product spacing: 12mm (distance between two screws)
7. Temperature range: -30 +120 degree Celsius
8. Number: 8P
9. Screw specification: M4

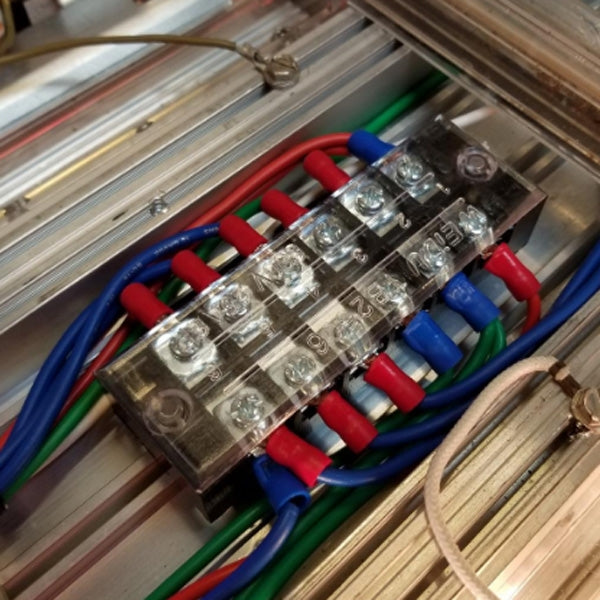

10. The role of the product: the role of the terminal block is to connect the lines inside the electrical box equipment and outside the electrical box equipment, and play the role of signal (current and voltage) transmission
11. Product features: make the wiring beautiful, convenient maintenance, simple operation and convenient installation.
12. Scope of application: RV yacht distribution box, electrical appliances, etc.
13. Product composition:
Eight-way 25A terminal block x 5
Red 8-position connector x 5
Black 8-position connector x 5
2. Specifications: 25A 600VAC
3. Withstand voltage: AC2500V / 1Min
4. Using the warp: 22-10AWG (4.0 square millimeter)
5. Maximum torque: 9KG.CM
6. Product spacing: 12mm (distance between two screws)
7. Temperature range: -30 +120 degree Celsius
8. Number: 8P
9. Screw specification: M4
10. The role of the product: the role of the terminal block is to connect the lines inside the electrical box equipment and outside the electrical box equipment, and play the role of signal (current and voltage) transmission
11. Product features: make the wiring beautiful, convenient maintenance, simple operation and convenient installation.
12. Scope of application: RV yacht distribution box, electrical appliances, etc.
13. Product composition:
Eight-way 25A terminal block x 5
Red 8-position connector x 5
Black 8-position connector x 5
Specification:
| Package Weight |
|
