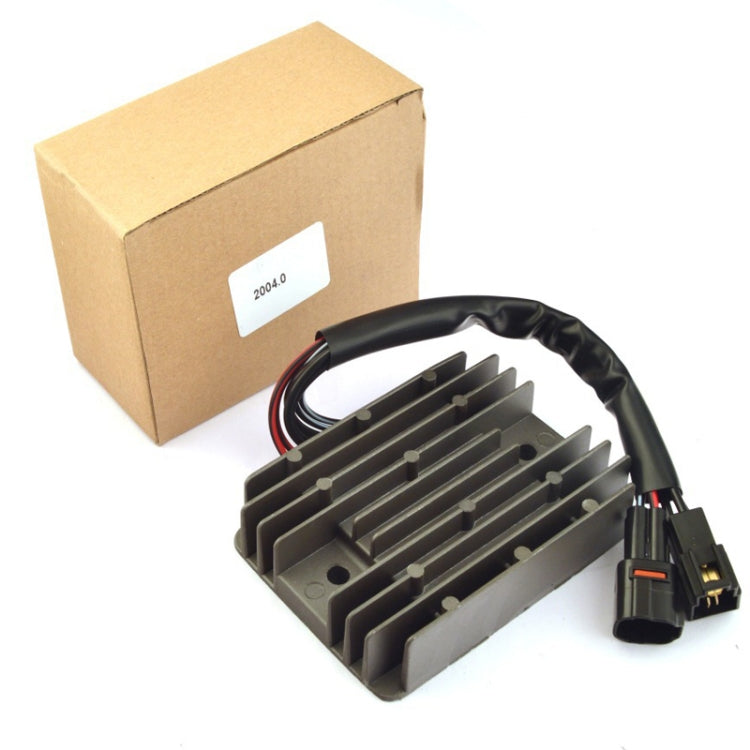

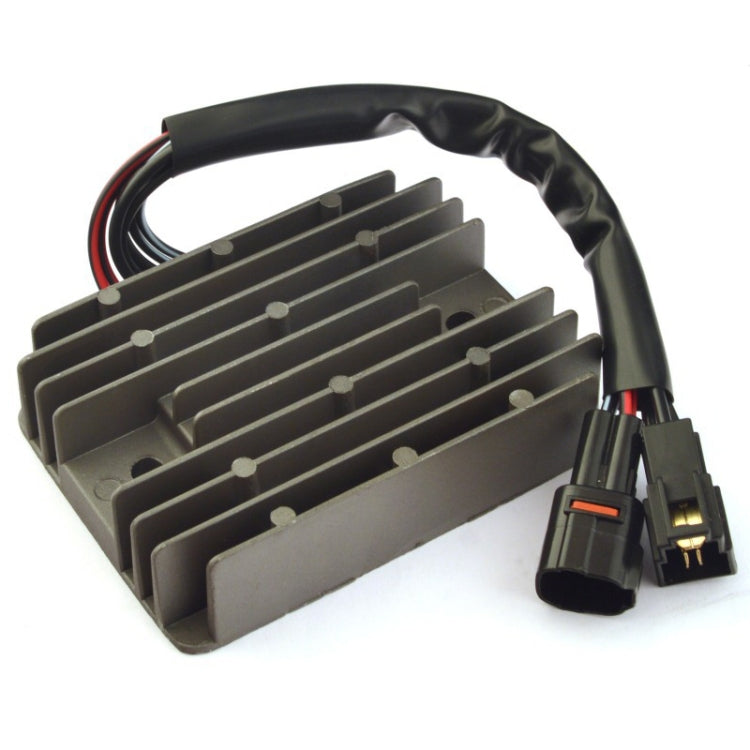

2004.0 Motorcycle Rectifier For Suzuki TL1000GSXR600 / GSXR750, 2004.0

1. Weight: 310G
2. Output voltage: 14.5V
3. Output current: 50A
4. Wire length: 1.5 square meters x25CM

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For Suzuki LT-A KingQuad 700 2005 2007 32800-41F10
For Suzuki DL V-Strom 650 2007 2012 32800-41G00
For Suzuki DL 650 2013 2017 32800-47H10
For Suzuki GSF Bandit 1250 2007 2009 32800-18H00
For Suzuki GSF SA 1250 2016 32800-41G10
For Suzuki GSF Bandit 650 2007 2010 32800-18H00
For Suzuki GSX R 1000 2005 2008 32800-21H00
For Suzuki GSX R 600 2006 2007 32800-02H00
For Suzuki GSX R 750 2006 2007 32800-02H00
For Suzuki GSX S 750 2015 2016 32800-47H00
For Suzuki GSX R 600 2011 2018 32800-47H00
For Suzuki GSX R 750 2008 2009 32800-18H00
For Suzuki GSX R 600 2008 2009 32800-18H00
For Suzuki GSX 650 2008 2009 32800-18H00
For Suzuki GSX R 750 2011 2018 32800-47H00
For Suzuki GSX R 1000 2009 2016 32800-47H00
For Suzuki SFV Gladius 650 2009 32800-41G10
For Suzuki SFV 650 2014 2015 32800-47H00
For Suzuki SV 650 2017 32800-47H00
For Suzuki VL 800 2013 2017 32800-41F10
For Suzuki VL Volusia 800 2001 2004 32800-41F10
For Suzuki VL Boulevard C50 800 2005 32800-41F10
For Suzuki VL Boulevard C50 800 2005 2012 32800-41F11
For Suzuki VL Boulevard C90 1500 2005 2009 32800-41F10
For Suzuki VZ Boulevard M50 800 2005 2009 32800-41F11
For Suzuki VZ 800 2013 2017 32800-41F10
